$14,995.00
One power point and a drain. Plus GST.

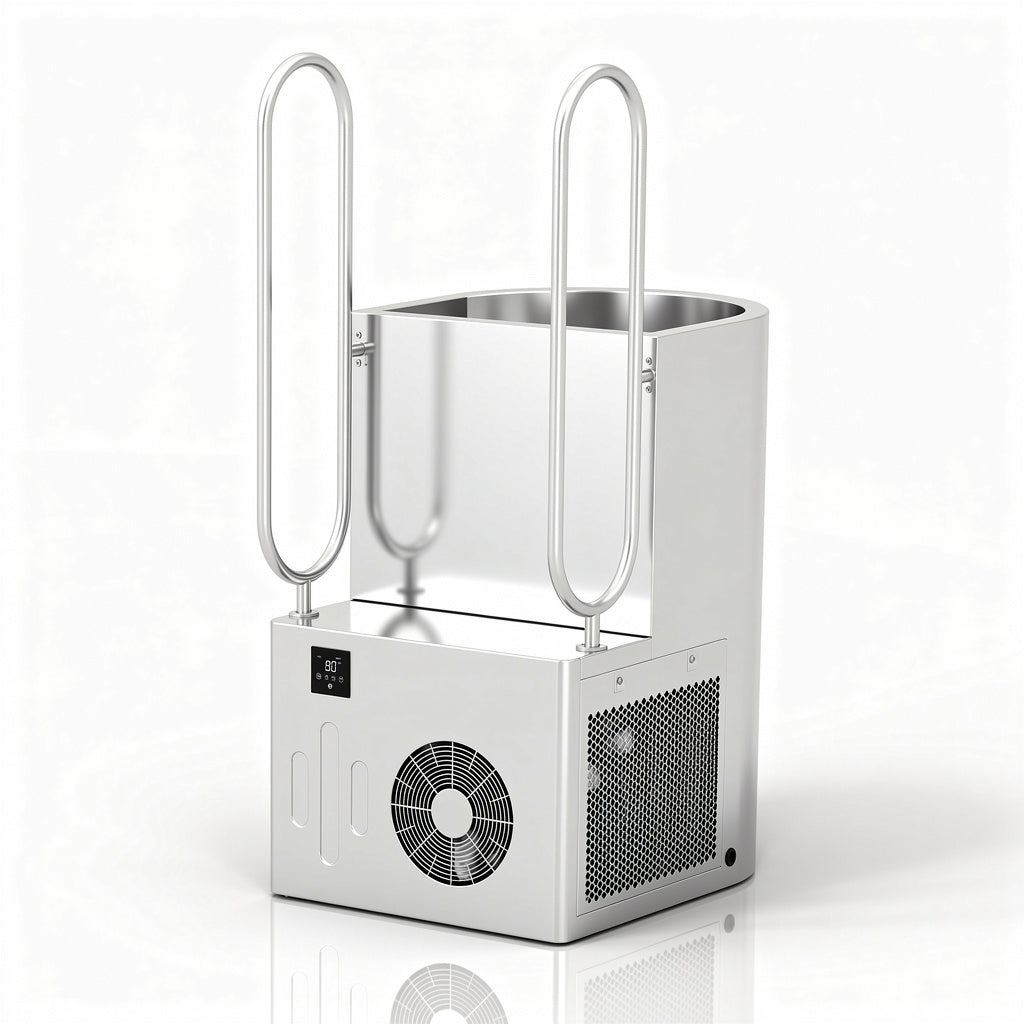

Norge N-02
Single user upright ice bath. Marine grade stainless steel, 0 to 40 °C, chilled by a 1 HP, 3 kW chiller. One finish: stainless.
Straight to your question
01 · Cold
The cold, measured.
One cool down figure for the N-02: about 300 L of water taken from 20 °C to 3 °C in roughly 3.5 hours, in a 25 °C room, on a 1 HP, 3 kW chiller. Those are the two measured points. The line between them shows direction, not a curve.
- Temperature range
- 0 to 40 °C
- Cool down
- 300 L from 20 to 3 °C in approx 3.5 h, at 25 °C ambient
- Operates in ambient down to
- -10 °C
04 · Footprint
Fits where a cabin cannot.
The N-02 stands upright, so its footprint is about the size of a single shower base: 1130 by 780 mm, 1830 mm tall, 76 kg before water. It goes where a sauna cabin never could. Three things to check before it arrives.
- Footprint: a clear 1130 x 780 mm patch of floor, with room to step in from one long side.
- Power point: one standard outlet within reach of the unit.
- Drain: somewhere for roughly 300 L to go when you empty it, by gravity through the 1 inch outlet.
One power point and a drain. That is the whole install.
Where it goes
Balcony. A balcony asks the floor loading question; put it to your builder or body corporate.
Bathroom. The natural home: a floor waste for the gravity drain and a power point already there. Check the 1830 mm height clears the ceiling on the way in.
Garage. A slab, a power point, a drain or a hose to one. It runs in ambient down to -10 °C, so an unheated garage is within range.
Deck. Roughly 376 kg filled, standing on timber. Ask what the bearers are rated for before it arrives.

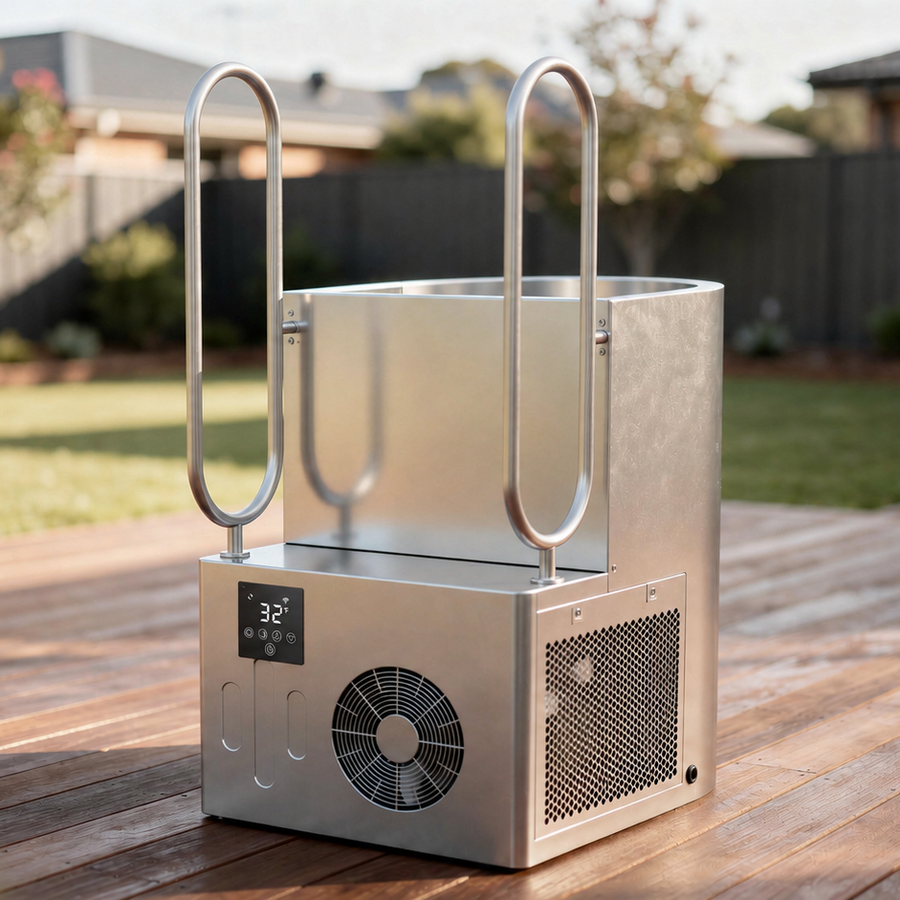

Courtyard. IPX4 rated and marine grade stainless steel. It needs an outdoor power point and somewhere for roughly 300 L to drain.
Filled, the tank weighs roughly 376 kg: 76 kg empty plus about 300 L of water. On a balcony or upstairs, check the floor with your builder.
At your consultDelivery dates are agreed at your consult.
02 · Water
The water takes care of itself.
A 120 W pump moves the water through two stages of filtration, 20 micron then 40 mesh, and an integrated ozone steriliser, and back to the tank. Emptying it is gravity through a 1 inch drain.
| Sterilisation | Integrated ozone |
|---|---|
| Filtration | Dual: 20 micron and 40 mesh |
| Circulation pump | 120 W |
| Drain | 1 inch, gravity |
| Water volume | Approx 300 L |
03 · Noise
Quiet enough to live with.
50 dBRated
The N-02 is rated at 50 dB. The chiller runs to hold the water at the temperature you set, so that is the sound of it working, not of it idling. On a balcony or beside a bedroom wall, that number is the one to weigh.
04 · Build
Built like a boat, not a bathtub.

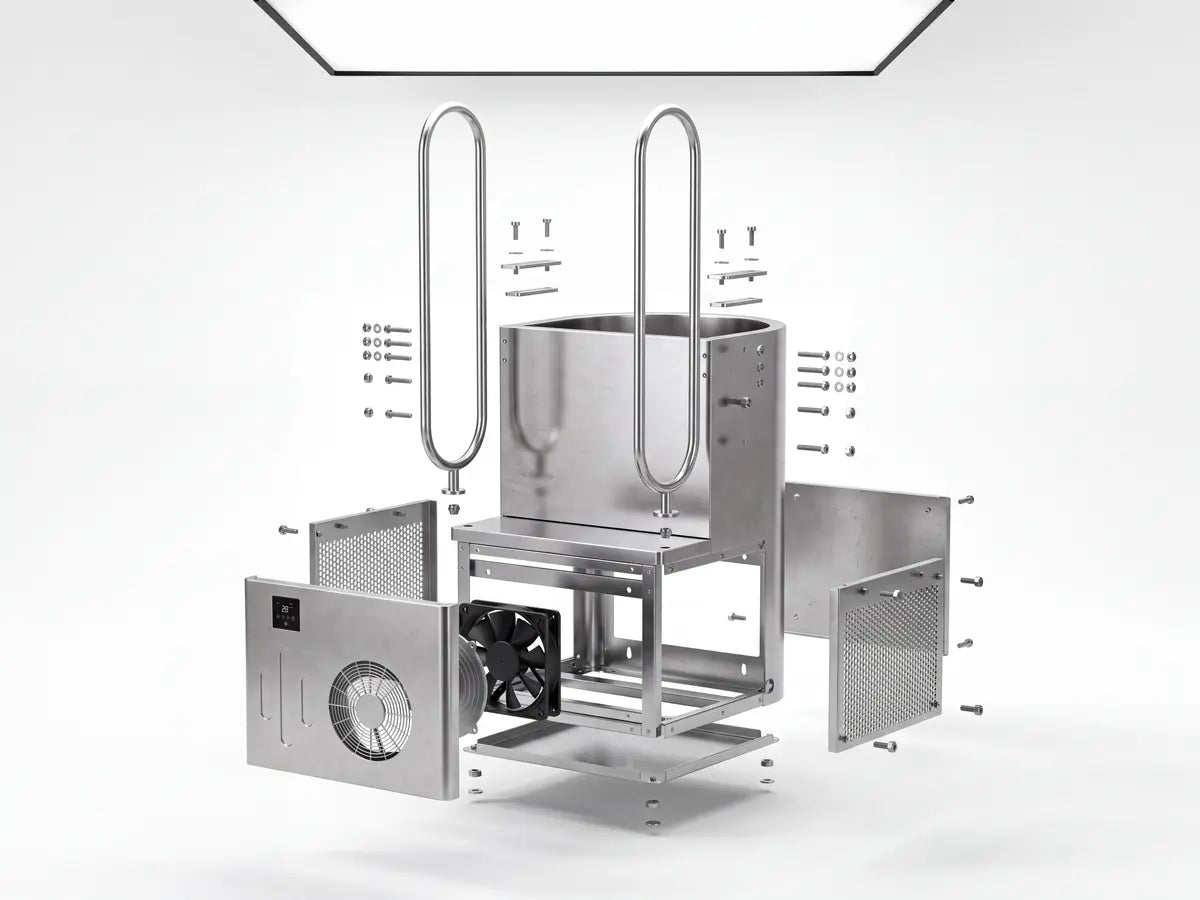

Marine grade stainless steel on an integrated chassis, rated IPX4 against splashing water. Three facts about how it is made, and the reason it can live outside.

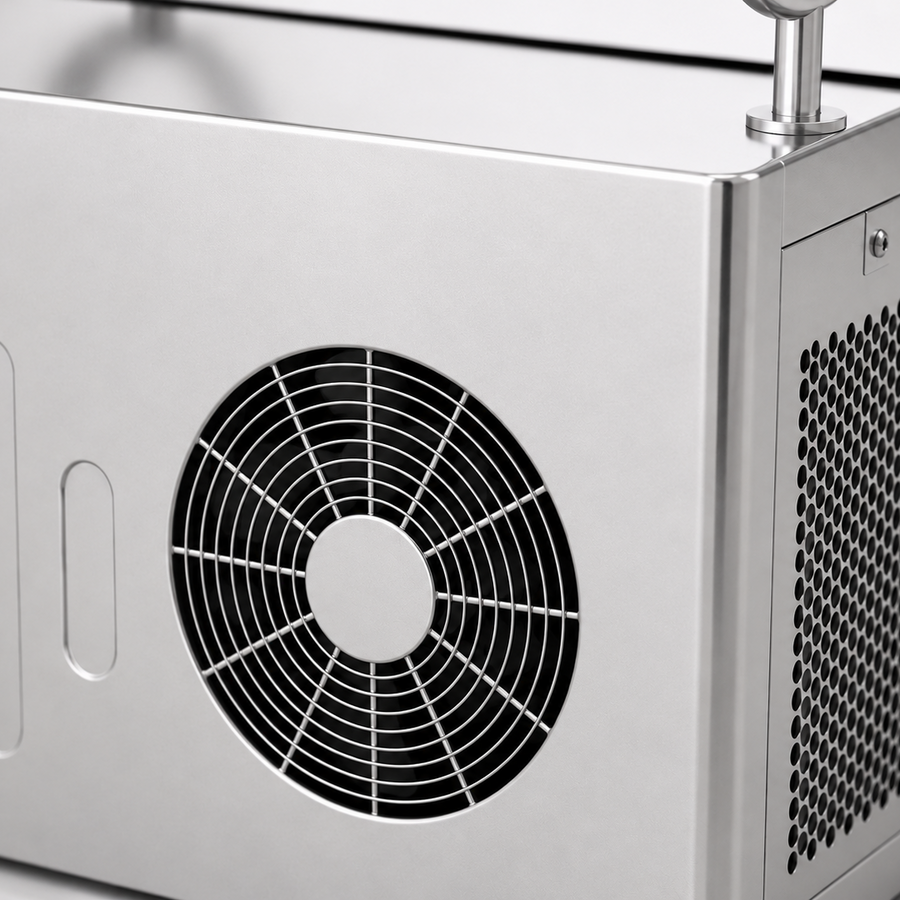

- Marine grade stainless steel
- The grade made for salt air and standing water, and the material the N-02 is built from.
- Integrated chassis
- An integrated chassis: one unit, rather than a tub with a chiller standing beside it.
- IPX4
- Rated against water splashing from any direction.
5 · Specification
Specification
| Type | Single user upright ice bath |
|---|---|
| Dimensions | 1130 x 780 x 1830 mm |
| Weight, empty | 76 kg |
| Water volume | Approx 300 L |
| Weight, filled | Approx 376 kg: 76 kg empty plus about 300 L of water |
| Construction | Marine grade stainless steel, integrated chassis |
| Ingress protection | IPX4 |
| Chiller | 1 HP / 3 kW |
| Heater | 1 kW |
| Temperature range | 0 to 40 °C |
| Cool down | Approx 3.5 h, 300 L from 20 to 3 °C at 25 °C ambient |
| Operating ambient | Down to -10 °C |
| Noise | 50 dB |
| Sterilisation | Integrated ozone |
| Filtration | Dual: 20 micron and 40 mesh |
| Circulation pump | 120 W |
| Drain | 1 inch, gravity |
| Install | One power point and a drain |
Figures are approximate where marked.
Questions
Asked before buying
How long until it arrives?
The N-02 needs one power point and a drain. Delivery dates are agreed at your consult.
How often do I change the water?
The water is filtered at 20 micron and 40 mesh, sterilised by integrated ozone and circulated by a 120 W pump. How often you change it depends on use; ask us at your consult.
What does it cost to run?
The chiller is 1 HP, 3 kW, and it runs to hold the temperature you set. What that costs depends on your setting and your room; ask us at your consult.
Can it go upstairs or on a balcony?
Filled, the tank weighs roughly 376 kg: 76 kg empty plus about 300 L of water, on a 1130 by 780 mm footprint. On a balcony or upstairs, check the floor with your builder or body corporate.
The other half
Complete the ritual.
Cold, then heat. There is exactly one other product in the range, and it is the warm half: the Stillhet Kube, a 6 person sauna with a Harvia stove and Incoloy far infrared in one cabin.
01 · Sauna
Stillhet Kube
$24,995.00
A Harvia stove with 120 kg of stone and Incoloy far infrared in one cabin, interlocked so it only ever draws the larger of the two.
Complete the ritual20% off any Kube + N-02 combo. Mention it in your consult and we apply it to your order.
